600X-TL Bearing Housing , Replacement Parts For Desulfurization Pump
Double rows taper roller bearings are fitted on pump end,roller bearing are fitted on drive end.Bearing are lubricated by oil which can modify bearing working condition and increase wear life of bearing.
This series of pumps uses the same series of transmissions, including brackets and bearing assemblies. The pump shaft has a large diameter, good rigidity, short cantilever, and will not bend and vibrate under severe working conditions. The bearing is a combination of single row tapered roller bearings and angular contact ball bearings. It can withstand the maximum axial and radial load of the pump. The bearings are lubricated with lithium grease. The advantages of this lubrication are: high oil film strength; grease adhesion. Good, not easy to lose, long use time; simple sealing, sealed end caps at both ends of the bearing body, can effectively prevent dirt and other dirt from entering the bearing.
slurry pump parts code:
-tell me the standard code no .we can quote you price immediately :
-Tell me your requirements, we can customize the pump or spare parts for you.
B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,
EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,
GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,
S50, U01, EPDM, PU, CR...
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | | A05(Cr27) | A49,Rubber,304,316 |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | | Assorted | |

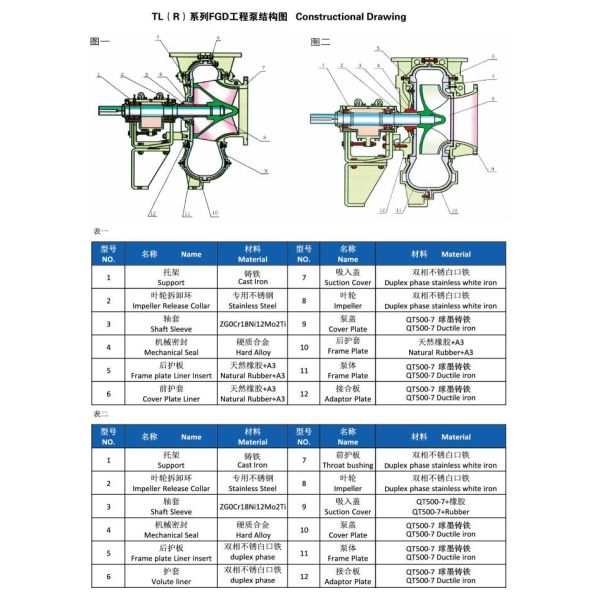

TL Series Desulfurization Pump Constructional Drawing
